| Place of Origin: | China |
|---|---|
| Brand Name: | SUKO |
| Minimum Order Quantity: | 1 UNIT |
| Price: | Negotiation |
| Packaging Details: | Plywood pallet, film etc. |
| Delivery Time: | 6-8 weeks |
| Payment Terms: | T/T |
| Supply Ability: | Customizing |
| Name: | Pipe Extruder | Power: | 3KW |
|---|---|---|---|
| Temperature Range: | 0-400℃ | Heating Method: | Electric Heating |
| Screw Diameter: | 25mm | Output: | 10-20kg/h |
| Model: | PTFE-PE-01 | Extruder Type: | Paste Extruder |
| Application: | Extruding PTFE Paste For Tube, Rod, Sheet, Etc. | Screw Length: | 1000mm |
| Barrel Diameter: | 50mm | Material: | PTFE |
| Control System: | PLC Control | Voltage: | 220V |
| Barrel Length: | 1200mm | ||
| Highlight: | UHMWPE Rod Ram Extruder Machine,Manufacturer Customized Rod Ram Extruder Machine,PTFE Rod Ram Extruder Machine |
||

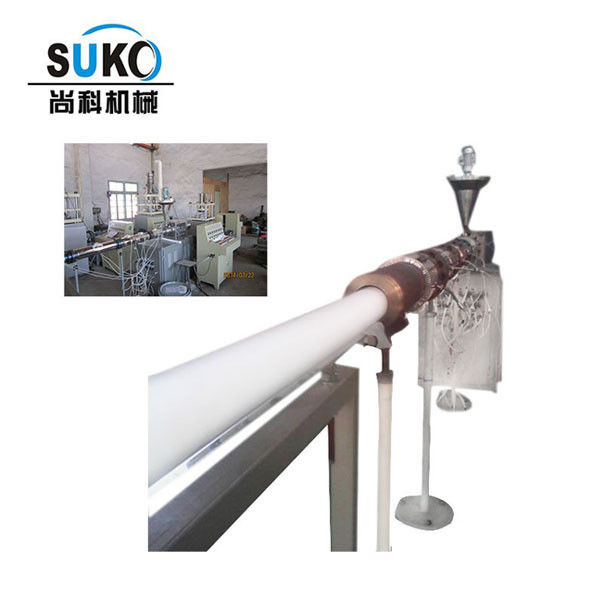

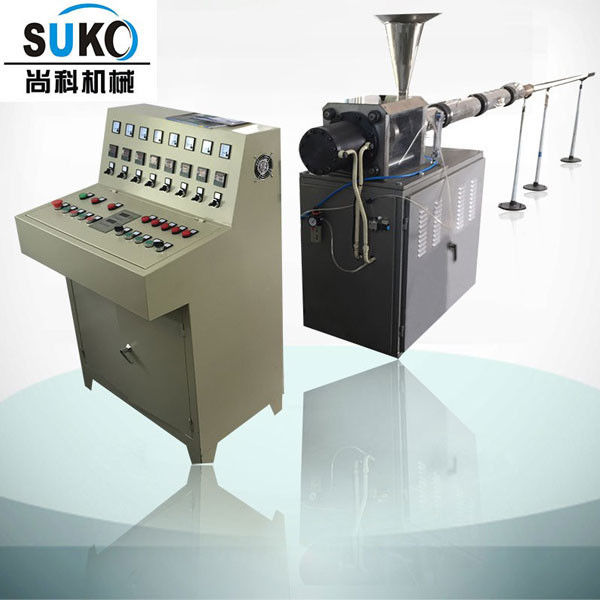

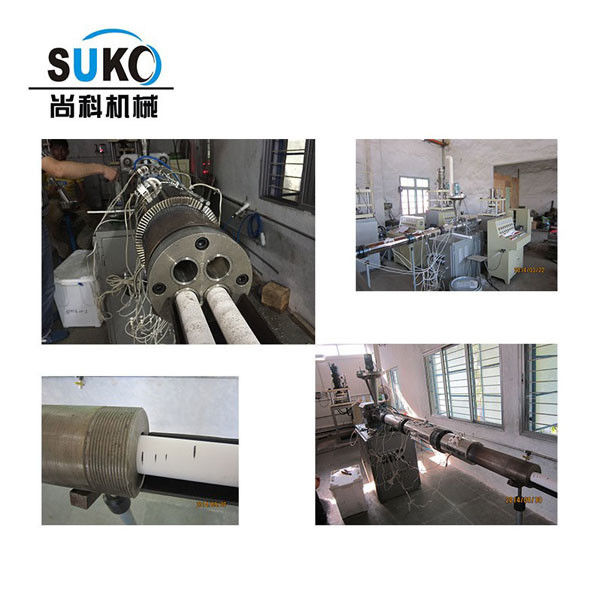

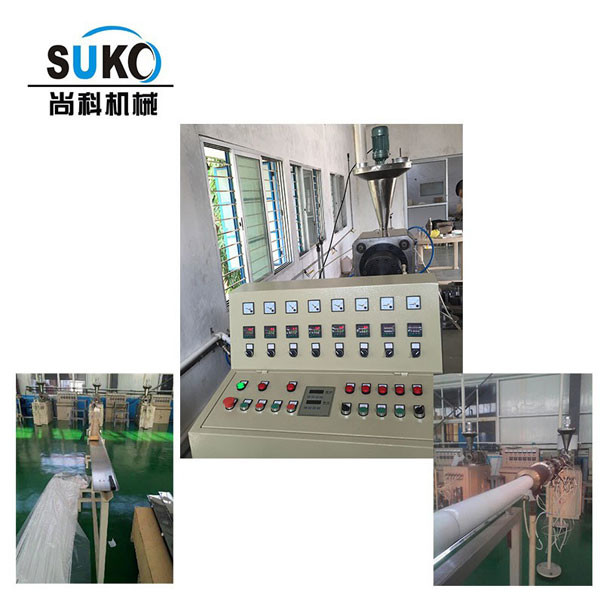

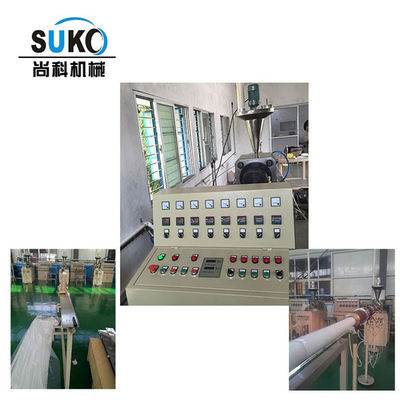

PTFE Plastic Paste Extruder Machine
Plastic PTFE Paste Machine Features:
ü Adopt adjustable speed to accommodate pitch,no need to change gear while operation;
ü High productive efficiency ; production rate is three times higher than present usual machine per hour, the max production reach to 98m/hour;
ü Low noise , transmission and pulling system adopt absorbing sound ,reducing shake and inserting equipment;
ü Easy maintenance ,transmission flexible, structure easy install and remove.
ü More friendly to environment: no PTFE powder splashing but powder output automatically
ü Intelligent control : producing gaskets by controlling the power quantity
ü More time saving : the power cut off automatically while the production number set up
ü Longer working life : no heat while working.
ü high quality components used.
Flow Chart
Paster Extrusion tube process:
PTFE Fine Powder raw material →Sifting →Mix with solvent→ Heating→ Performing → Extrusion→ Sintering → Finished Tube.
Matched machine: Machine screening, Mixing machine, Performing machine, Extruder machine, and Furnace heating, Mould.
Techincal Data:
| Paste Extruder | Type & Technical Data |
| DX-D01 (suit for 25-60 lodaing cavity)OD:2mm-6mm | PTFE Paste extrusion Hose Main machine : 30KW power 380V 50Hz one key start with hydraulic drive.1.2M high for material load cavity.WorkBlank machine : 3KW with 380V 50Hz Hydraulic drive PTFE blank high with 300-600mm.Furnace : 18KW 380V 50Hz with total high 8.5M 500 degree temperature. |
| DX-100(suitable for 60-120 loading cavity)OD:6MM-60MM -2 loading cavity | FE Paste extrusion Hose Main machine : 30KW power 380V 40Hz one key start with hydraulic drive.1.5M high for material load cavity.WorkBlank machine : 3KW with 300V 50Hz Hydraulic drive PTFE blank high with 300-600mm. |
PTFE Hose Machine Specifications
* Long service life through solid workmanship and use of high quality components* Low wall thickness tolerance through self-centering mandrel and special nozzle* Measurement transducer like pressure, force and ram speed for permanent control of the extrusion process and extrusion speed* Hydraulic closure with high closing force for quick loading of the extruder* Special pre-form press with pre-form preparation device for multiple loading of the loading carriage i.e. extruder* Electrically adjustable mandrel* Measuring and controlling system for constant extruder speed* Controlling system for constant speed of the extrudate* User-friendly and maintenance-free system* The paste extrusion systems are designed especially to costumers requests* Automatic adjustment of the total system as well as recording of the formula* Operating through touch screen and recording of the extrusion process parameters
The Plastic PTFE Paste Extruder Machine is commonly used in the manufacturing of various products such as tubing, sheets, and rods made of PTFE. PTFE is a synthetic polymer known for its high resistance to chemicals, heat, and abrasion, making it ideal for use in a wide range of industries including automotive, aerospace, electronics, and medical.Some common applications of products made using a Plastic PTFE Paste Extruder Machine include:
Seals and gaskets for chemical processing equipment
Insulation for electrical wires and cables
Components for medical devices such as catheters and tubing
Bearings and bushings for machinery and equipment
Linings for chemical storage tanks and piping
Overall, the Plastic PTFE Paste Extruder Machine plays a crucial role in the production of high-quality PTFE products that are essential in various industries for their unique properties and performance characteristics.
Our staff works closely with each customer to ensure that every job meets your exact requirements and our high quality standards. Contact SUKO today!
Please note: Any technical data provided is for informational purposes only. Before specifying this machine for your application, please let us know you requirement to better advise suitable machine for you.
